Ukulele Model

11/2019-12/2019

This model originally started out as a fun side project for fun. Used plenty of research and dial calipers to recreate a basic ukulele.

Initial Setup

Tenor Ukulele Body and Neck

274418 (2).PNG

When starting out, I was creating the model out of my head, making up dimensions, however as we can see, this attempted resulted in odd unrealistic shapes.

Improved Model

After starting, I pulled out the handy dial caliper and started to make better measurements of each ukulele part!

Ukulele Body and Neck, with realistic dimensions.

Ukulele Bridge (for strings)


Tuning Peg

Tuning Peg Washers

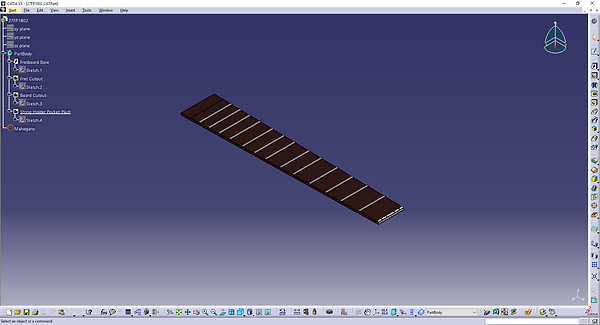

Fret Board

Final Assembly

Produced in CATIA V5 - (approx 20 hours total with research and measurements)
